Polar Coordinate component

Updated: Aug 18, 2021

polar coordinate is a component made in grasshopper via python language-programming.

This component provides mapping geometry from an object to another objects.



polar coordinate

The polar coordinate is a two-dimensional coordinate system, In this system, two parameters have a role, the first refers to the distance between a reference point and a point on a plane and the second is about the angle from a reference direction.

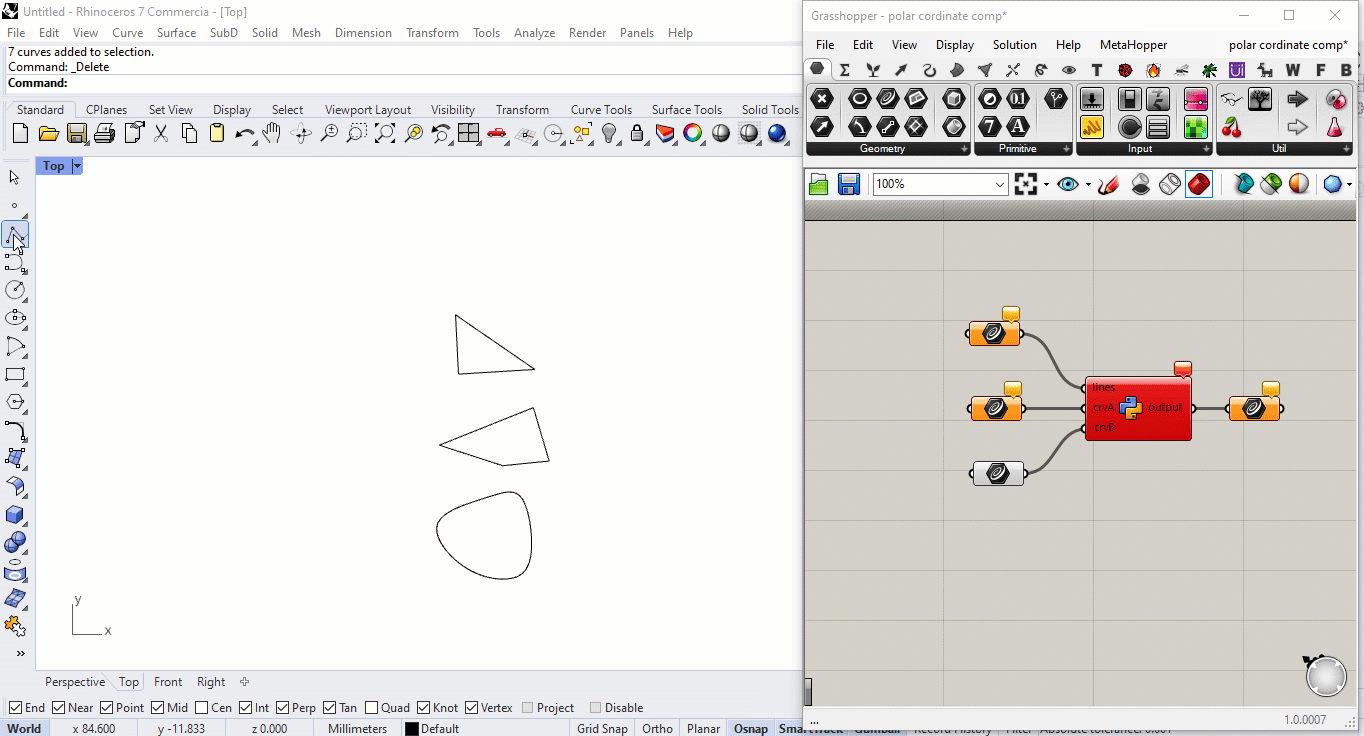

we used this system to make a component in Rhino-grasshopper that enable us to mapping geometry from the base boundary to a target geometry.


Code

import rhinoscriptsyntax as rs

import Rhino.Geometry as rg

import ghpythonlib.treehelpers as th

import Rhino.Geometry.Intersect as int

import ghpythonlib.components as gc

matpts_a=[[None for i in range(1)]for j in range(len(lines))]

for i in range(len(matpts_a)):

matpts_a[i].pop(0)

for i in range(len(lines)):

matpts_a[i]=rs.DivideCurve(lines[i],5)

matlines_a=[[None for i in range(1)]for j in range(len(lines))]

for i in range(len(matlines_a)):

matlines_a[i].pop(0)

cent_a=rs.DivideCurve(crvA,50)

pt_sum_a = (cent_a[0])

for i in range(1, len(cent_a)):

pt_sum_a += (cent_a[i])

cent_a= pt_sum_a / len(cent_a)

cent_b=rs.DivideCurve(crvB,50)

pt_sum_b = (cent_b[0])

for i in range(1, len(cent_b)):

pt_sum_b += (cent_b[i])

cent_b= pt_sum_b / len(cent_b)

for i in range(len(lines)):

for j in range(len(matpts_a[0])):

matlines_a[i].append(rg.Line(cent_a,matpts_a[i][j]))


matpts_aa=[[[None for i in range(2)]for j in range(len(matlines_a[0]))]for k in range(len(lines))]


matpts_ll=[[[None for i in range(2)]for j in range(len(matlines_a[0]))]for k in range(len(lines))]

Lines_A=[[None for i in range(1)]for j in range(len(lines))]

for k in range(2):

for i in range(len(lines)):

for j in range(len(matlines_a[0])):

matpts_aa[i][j].pop(0)

matpts_ll[i][j].pop(0)


for i in range(len(Lines_A)):

Lines_A[i].pop(0)


for i in range(len(lines)):

for j in range(len(matlines_a[i])):

ccx=(int.Intersection.CurveLine(crvA,matlines_a[i][j],0.2,0.2))

for xe in ccx:

matpts_aa[i][j].append(xe.PointA)

print matpts_ll

for i in range(len(lines)):

for j in range(len(matlines_a[0])):

matpts_ll[i][j].append(rg.Line(cent_a,matpts_aa[i][j][0]))

matpts_ll[i][j].append(rg.Line(cent_a,matpts_aa[i][j][1]))


for i in range(len(lines)):

for j in range(len(matlines_a[0])):

for k in range(2):

if abs(sum(gc.UnitVector(rs.VectorCreate(matlines_a[i][j].From,matlines_a[i][j].To)))-sum(gc.UnitVector(rs.VectorCreate(matpts_ll[i][j][k].From,matpts_ll[i][j][k].To))))<0.002:

Lines_A[i].append(matpts_ll[i][j][k])


data_ratio=[[None for i in range(1)]for j in range(len(lines))]

for i in range(len(data_ratio)):

data_ratio[i].pop(0)

for i in range(len(lines)):

for j in range(len(matlines_a[0])):

data_ratio[i].append((matlines_a[i][j].Length)/(Lines_A[i][j].Length))


lines_b=[[None for i in range(1)]for j in range(len(lines))]

matpts_bb=[[[None for i in range(2)]for j in range(len(matlines_a[0]))]for k in range(len(lines))]

matpts_b_ll=[[[None for i in range(2)]for j in range(len(matlines_a[0]))]for k in range(len(lines))]

Lines_B=[[None for i in range(1)]for j in range(len(lines))]

for k in range(2):

for i in range(len(lines)):

for j in range(len(matlines_a[0])):

matpts_b_ll[i][j].pop(0)

matpts_bb[i][j].pop(0)

for i in range(len(Lines_B)):

Lines_B[i].pop(0)


for i in range(len(lines_b)):

lines_b[i].pop(0)

for i in range(len(lines)):

for j in range(len(matlines_a[0])):

ccx=(int.Intersection.CurveLine(crvB,rg.Line(cent_b,matlines_a[i][j].Direction),0.2,0.2))

for xe in ccx:

matpts_bb[i][j].append(xe.PointA)


for i in range(len(lines)):

for j in range(len(matlines_a[0])):

matpts_b_ll[i][j].append(rg.Line(cent_b,matpts_bb[i][j][0]))

matpts_b_ll[i][j].append(rg.Line(cent_b,matpts_bb[i][j][1]))


for i in range(len(lines)):

for j in range(len(matlines_a[0])):

for k in range(2):

if abs(sum(gc.UnitVector(rs.VectorCreate(matlines_a[i][j].From,matlines_a[i][j].To)))-sum(gc.UnitVector(rs.VectorCreate(matpts_b_ll[i][j][k].From,matpts_b_ll[i][j][k].To))))<0.002:

Lines_B[i].append(matpts_b_ll[i][j][k])

a=th.list_to_tree(Lines_B)

b=th.list_to_tree(Lines_A)


points=[[None for i in range(1)]for j in range(len(lines))]

Lines_b_f=[[None for i in range(1)]for j in range(len(lines))]

output=[[None for i in range(1)]for j in range(len(lines))]

for i in range(len(Lines_B)):

Lines_b_f[i].pop(0)

for i in range(len(output)):

output[i].pop(0)

for i in range(len(points)):

points[i].pop(0)

e=cent_b

Lines_b_ff=0

for i in range(len(lines)):

for j in range(len(matlines_a[0])):

Lines_b_f[i].append(rg.Line(cent_b,rs.VectorCreate(Lines_B[i][j].From,Lines_B[i][j].To) ,(-(Lines_B[i][j].Length)*data_ratio[i][j])))

Lines_b_ff=(rg.Line(cent_b,rs.VectorCreate(Lines_B[i][j].From,Lines_B[i][j].To) ,(-(Lines_B[i][j].Length)*data_ratio[i][j])))

points[i].append(Lines_b_ff.To)

c=th.list_to_tree(Lines_b_f)

d=th.list_to_tree(data_ratio)

for i in range(len(lines)):

for j in range(len(matlines_a[0])):

output[i].append(rg.PolylineCurve(points[i]))

output=th.list_to_tree(output)


#polarcoordinate #python #geometrymapping
